Basic Info
Model No.: FH-Welded Wire Mesh 03
Material: Galvanized Iron Wire
Hole Shape: Square
Mesh Size: 3/4 Inch
Surface Treatment: Galvanized
Weave Technique: Other
Application: Construction Wire Mesh
Color: Other
Type: Welded Mesh
Certification: SGS, ISO9001
Condition: New
Additional Info
Packaging: waterproof paper, kraft paper, or customized
Brand: FUHAI
Transportation: Ocean
Place of Origin: Hebei, China.
Certificate: ISO 9001-2008
HS Code: 7314410000
Port: Xingang
Product Description

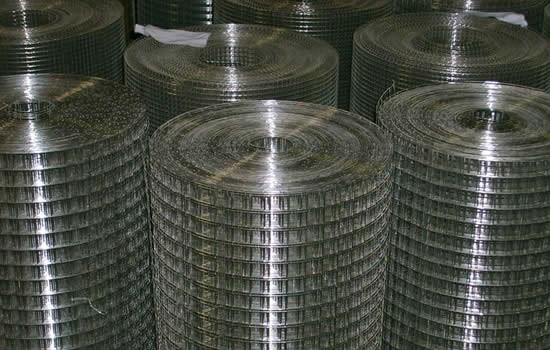

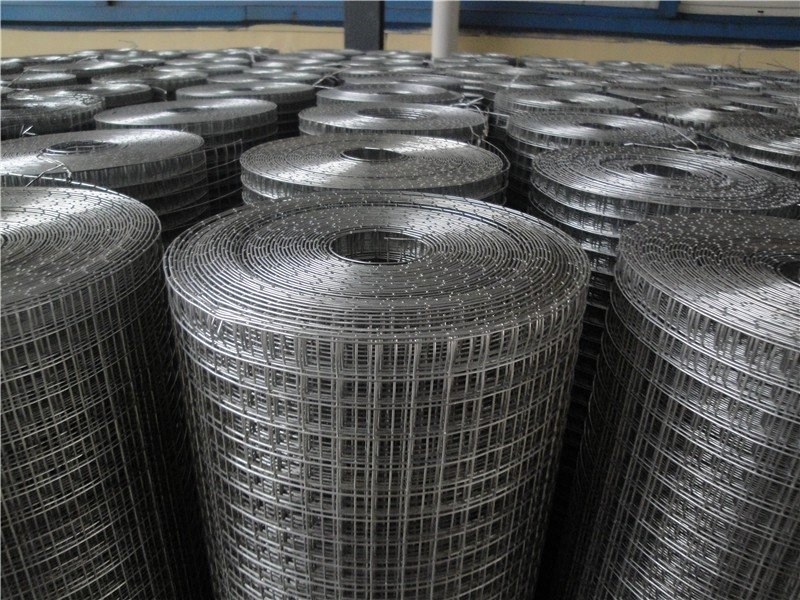

Introduction to Welded Wire Mesh Galvanized:
Galvanizing Welded Wire Mesh is not woven, but rather the wires are joined by resistance-welding which results in strong, consistent welds which use no filler metal in the joints.
Uses: Welded Wire Mesh Galvanized is used in industry and agriculture building, transportation andmining for all such purposes as poultry houses, egg baskets, runway enclosures,draining rack, fruit drying screen, fence.
Material of Zinc Coated Welded Wire Mesh: Electro Galvanized Wire, Low Carbon Steel Wire
Surface Treatment for Welded Wire Mesh: Electro Galvanized before Welding, Electro Galvanized After Welding, HDG before welding, HDG after Welding, PVC Coated, PVC Spray, etc.
General Sizes for Galvanized Welded Wire Mesh in List below:
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4″ x 1/4″ | 6.4mm x 6.4mm | 22,23,24 |
| 3/8″ x 3/8″ | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8″ x 5/8″ | 16mm x 16mm | 18,19,20,21, |
| 3/4″ x 3/4″ | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1″ x 1/2″ | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2″ x 1-1/2″ | 38mm x 38mm | 14,15,16,17,18,19 |
| 1″ x 2″ | 25.4mm x 50.8mm | 14,15,16 |
| 2″ x 2″ | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length for Welded Wire Mesh: 30m;width: 0.5m to 1.8m, customized. 2.Special sizes available at request 3.Package for Zinc Coated Welded Wire Mesh: Waterproof Paper, Kraft paper, Plastic Film, or customized. |
||
Looking for ideal Welded Wire Mesh Galvanized Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanizing Welded Wire Mesh are quality guaranteed. We are China Origin Factory of Zinc Coated Welded Wire Mesh. If you have any question, please feel free to contact us.
