Electro Galvanized Hexagonal Wire Nettings

Short Description:

Basic Info Model No.: FH-Hexagonal Netting Material: Galvanized Iron Wire Application: Other, Cages, Protecting Mesh, Decorative Mesh, Fence Mesh Surface Treatment: Galvanized Weave Method: Twist Weave Technique: Twill Weave Wire Diameter: 0.4mm To 1.6mm Length: 50m Width: 0.5m, 1.0m, 1.2m, 1.5m, 2m, Etc Opening Size: 5/8” To 3” Zinc Coating: 20G/m2 To 220g/m2 Additional Info Packaging: waterproof paper, blister packiing then pallet Productivity: 30000Sqm per day Brand: FUHAI Tran...


Product Detail

Product Tags

Basic Info

Model No.: FH-Hexagonal Netting

Material: Galvanized Iron Wire

Application: Other, Cages, Protecting Mesh, Decorative Mesh, Fence Mesh

Surface Treatment: Galvanized

Weave Method: Twist

Weave Technique: Twill Weave

Wire Diameter: 0.4mm To 1.6mm

Length: 50m

Width: 0.5m, 1.0m, 1.2m, 1.5m, 2m, Etc

Opening Size: 5/8” To 3”

Zinc Coating: 20G/m2 To 220g/m2

Additional Info

Packaging: waterproof paper, blister packiing then pallet

Productivity: 30000Sqm per day

Brand: FUHAI

Transportation: Ocean,Land,Air

Place of Origin: Dingzhou, China

Supply Ability: 500Rolls per day

Certificate: ISO9001

HS Code: 7314410000

Port: Tianjin

Product Description

Electro Galvanized Hexagonal Wire Nettings



Hexagonal Wire Netting is widely used in building, oil, chemical industry, breed, plant protection, food processing reinforce guard and heat preservation, for example: make net cast, stone cage, insulated net wall, boiler cover, poultry fence etc.

Materials for Hexagonal Wire Mesh:



1. First class Stainless Steel Wire materials in SUS201, 202, 302, 304, 316, 304L, etc.

2. Iron Wire, galvanized wire, PVC-coated wire, Copper wire.

We supply four kinds of hexagonal Wire Netting according to differences of manufacturing process:

1 Galvanized hexagonal iron wire netting, straight twisted

2 Plastic-coated hexagonal wire netting, straight twisted

3 Galvanized hexagonal wire netting, reverse twisted

4 Galvanized hexagonal wire netting with wire reinforcement, reverse twisted

The Specification of Galvanised Hexagonal Mesh:

Specifications

Twist Wire Diameter

Twist Width

Mesh (Inch)

Size No (MM)

Limit Error

British System no

Metric System Wire Diameter

British System

Metric System

3/8″

10

+0.5

BWG27-23

0.41-0.64mm

1′-6′

0.1-2m

1/2

13

-1.5

BWG27-22

0.41-0.71mm

1′-6′

0.1-2m

5/8″

16

+1.0/-2.0

BWG27-22

0.41-0.71mm

1′-6′

0.1-2m

3/4

19

+1.0/-2.5

BWG26-20

0.46-0.89mm

1′-6′

0.1-2m

1

25

+1.5

BWG25-29

0.51-1.07mm

1′-6′

0.1-2m

1.25

31

-3.0

BWG24-18

0.56-1.24mm

1′-6′

0.1-2m

1.5

40

+2.0/-4.0

BWG23-16

0.64-1.65mm

1′-6′

0.1-2m

2

51

+2.0/-4.0

BWG22-14

0.71-2.11mm

1′-6′

0.1-2m

3

76

+2.0/-4.0

BWG21-14

0.81-2.11mm

1′-6′

0.1-2m

4

100

+2.0/-4.0

BWG20-12

0.89-2.8mm

1′-6′

0.1-2m

Other specification can be provide according to your requirement.

16560046321457647123

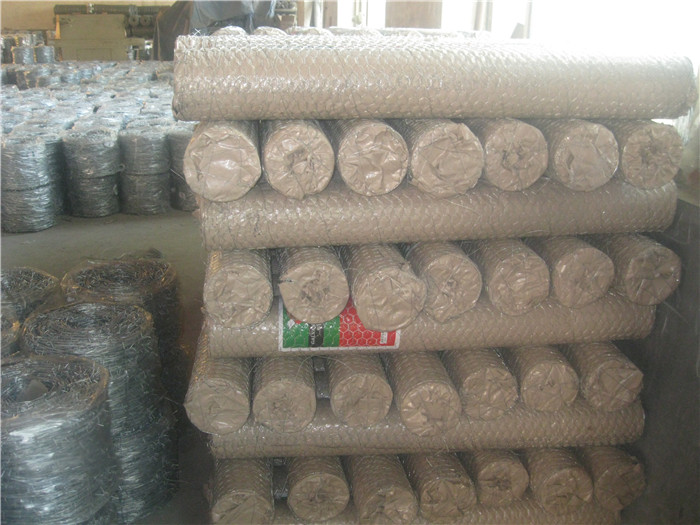

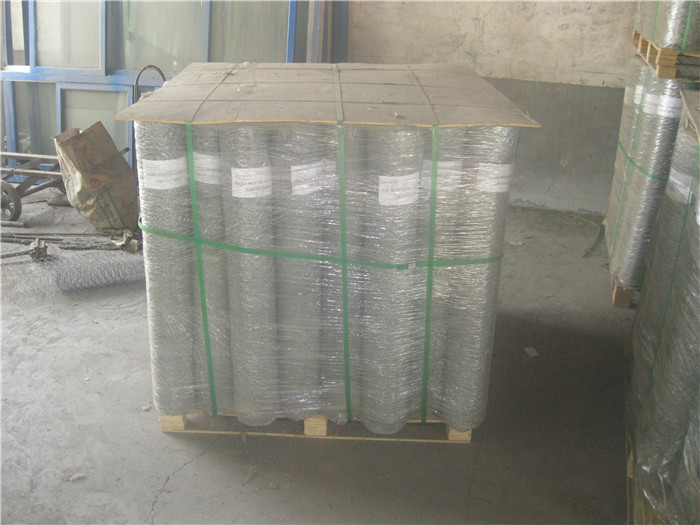

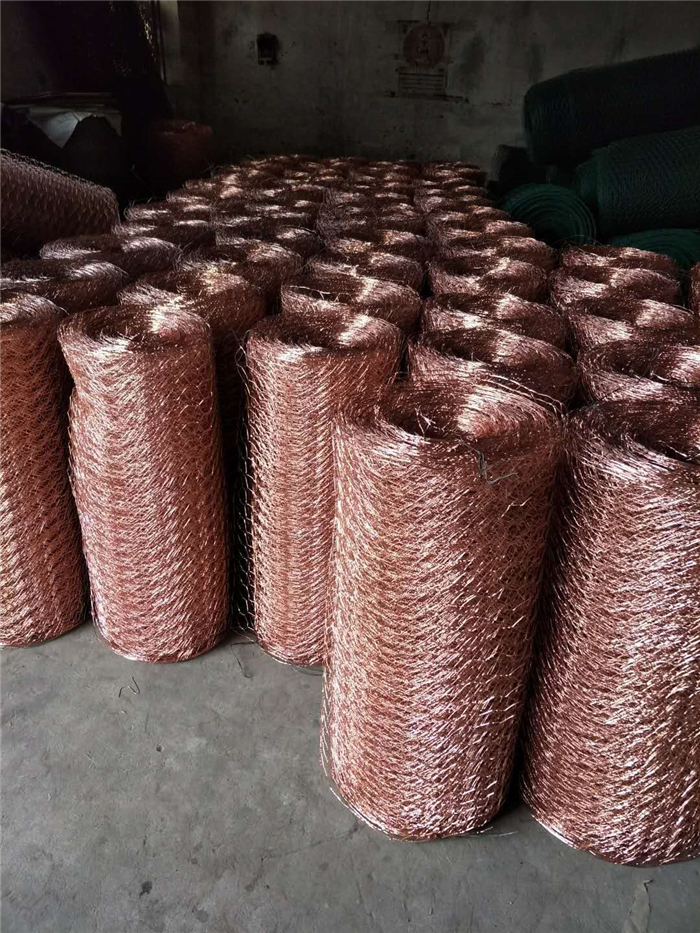

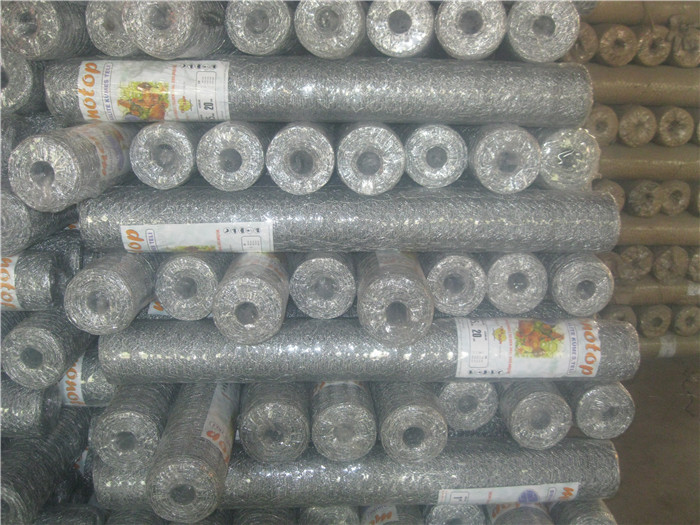

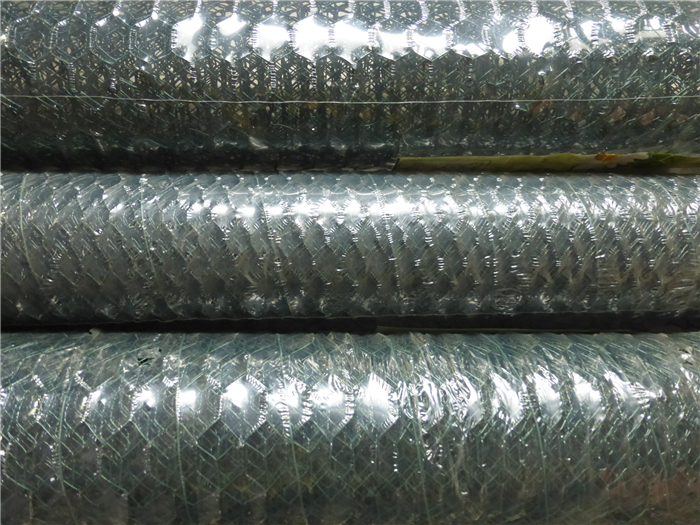

Packing of Galvanized Wire Netting:

Waterproof paper or blister packing then pallet. Other packing can be provide according to your requirements. Please refer to below pics.

IMG_0704IMG_0697

IMG_0683P1010608

Why choose us?

We offer our clients:

- Products of fine quality, favorable price and satisfactory post-sale service.

- Convenience to buy container loads of mixed products.

- Speedy delivery and standardized transportation service.

- Diversified trade terms such as Agency, International bidding, Counter trade, OEM, Assembling or Processing on supplied materials or designs.

Looking for ideal Hexagonal Wire Netting Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanised Hexagonal Mesh are quality guaranteed. We are China Origin Factory of Electro Galvanized Hexagonal Wire Netting. If you have any question, please feel free to contact us.
